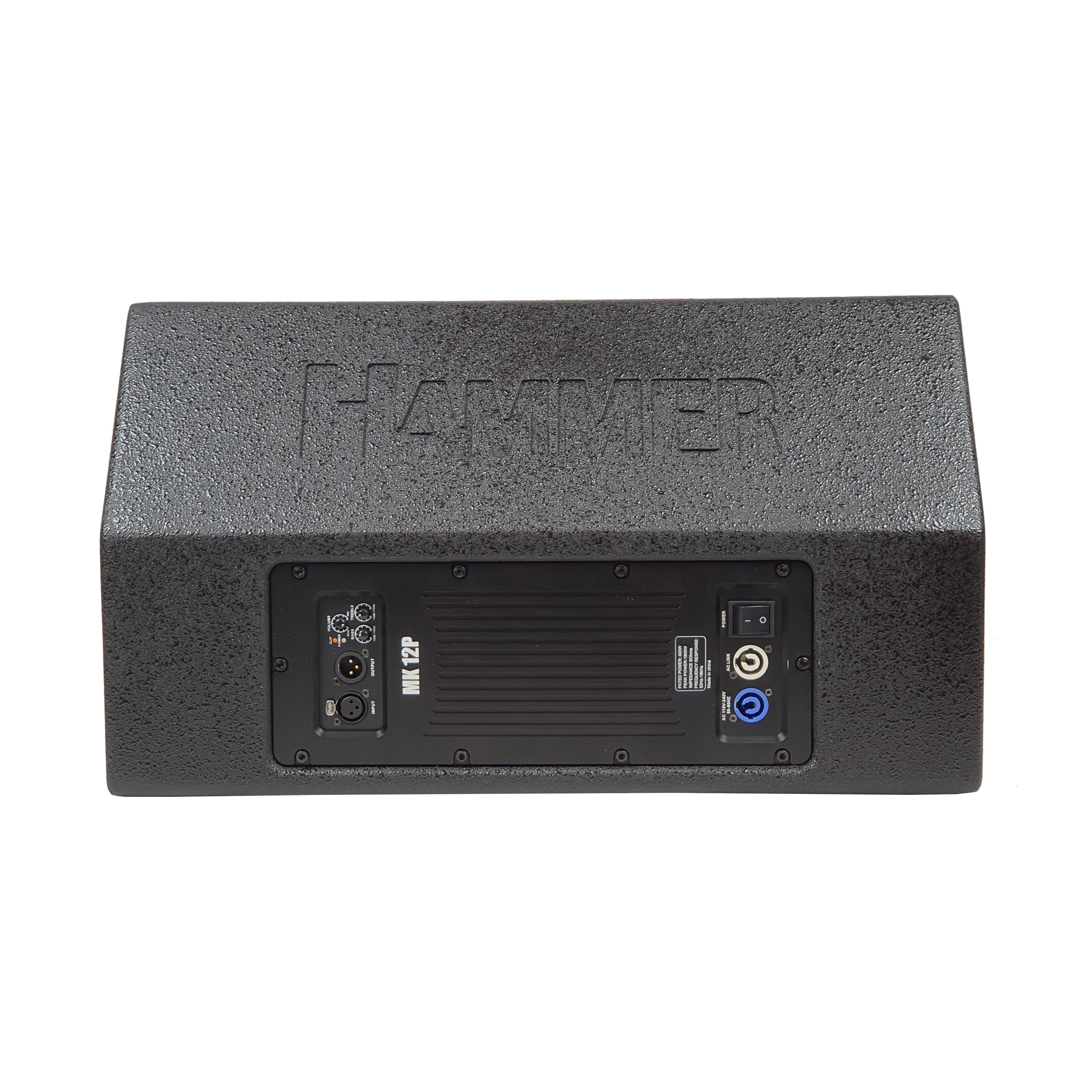

MK12P

The MK-P series powered monitor speakers are equipped with the optimal amp for MK series models that has been chosen after hours of testing. The amp has more than enough power for the program output of the speakers so as to prevent distortions when music is played, even at maximum sound volume. The professional amp is applied to all the speakers from the MK series, and it allows musicians and vocalists to produce powerful yet clear sounds. With excellent durability, it will most certainly bring you satisfaction for many years.

SPECIFICATIONS

Model Name: MK12P (Single 12“ Powered Monitor Speaker)

Power Handling: 350W (Apply Amplifier Output: 900W, 8Ω)

Frequency Range: 48Hz -18KHz

Frequency Response: 55Hz -18kHz

Average Sensitivity: 98dB(W/m)

Max SPL: 129dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 100º(H) x 90º(V)

Compression Driver: 75mm(3″) Voice Coil, 1.75″ exit

Woofer: 12″ woofer, 170mm Magnet/65mm voice coil

Connectors: 2 x XLR Female

Enclosure: CNC made with tongue and grove assembly 17mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 600(W) × 350mm(H) × 465mm(D)

Weight: 23.1kg


Apply Amplifier

Amplifier output power: 900W x 1/ 8Ω

input sensitivity: balance signal 0.77v, non-balance signal 1.4v

frequency response range: 20Hz-20kHz

Signal-to-noise ratio: >, 106 dB

Protection features: short circuit, overload, over temperature, limiting, start time delay

Additional Options: the panel has high and low tone gain adjustment knobs
