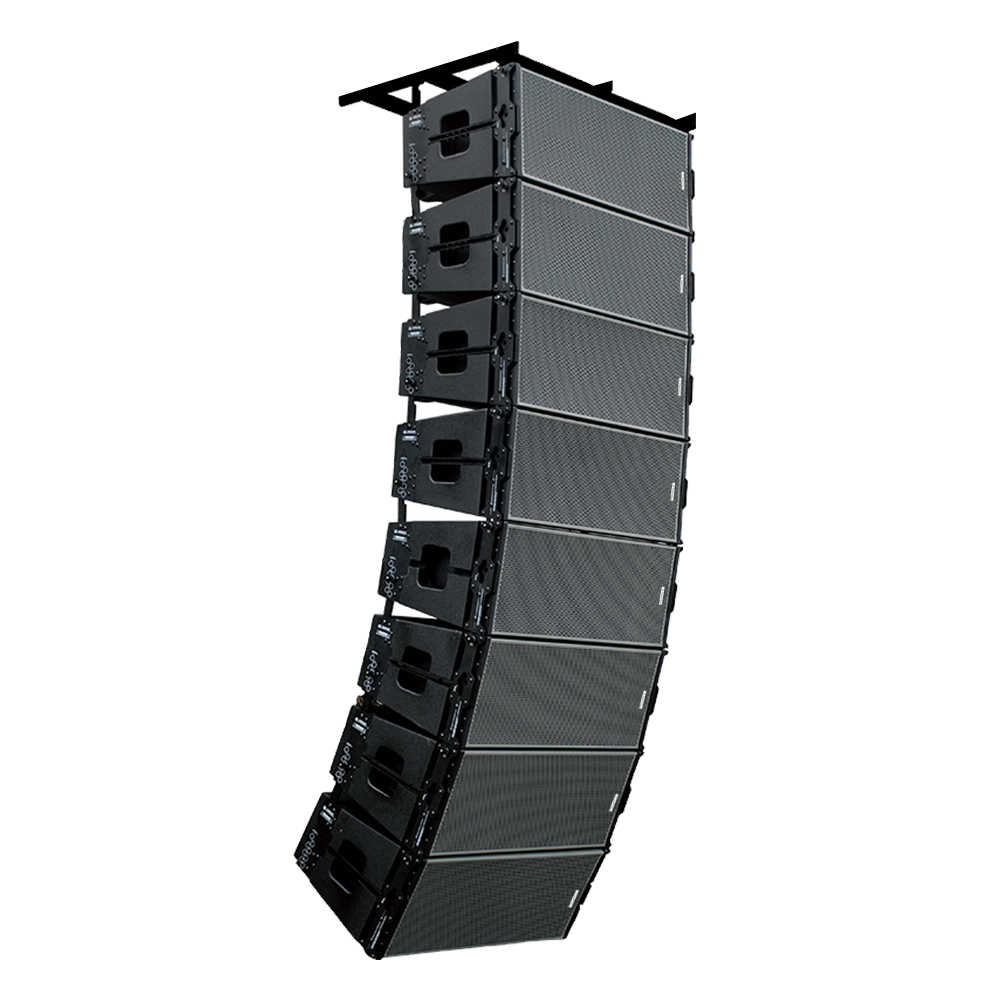

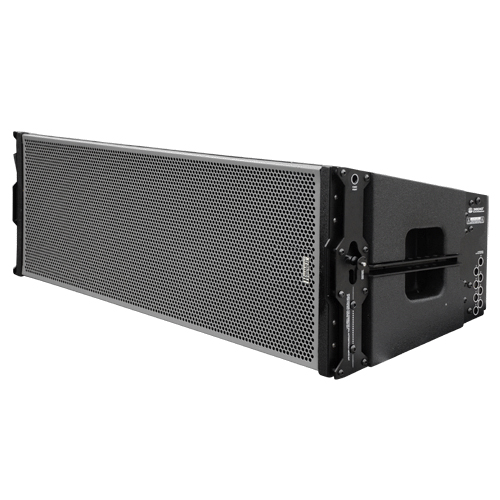

TLA12

system is a line source system and is suitable for indoor and outdoor PA enhancement, where high SPL at long distances is key. The TLA SERIES system is fully integrated and requires no tools for full installation.


TLA is specially designed for large scale concert halls. They feature perfect low-pitched sound playing from 4” (100mm) Neodymium driver and powerful magnet. In particular, the low-pitched unit designed by our own special coating remains intact without any transformation over time, and it is designed to have the excellent performance in spite of an amplifier’s degradation. In addition, its 3” titanium-compressed driver applied in medium and upper range and network design superiorly play sounds in order for audiences to be able to be fascinated by acoustic performance surrounded by plentiful low-pitched sounds and natural and clear performance. Also, an enclosure designed with specially-bonded plywood doesn’t generate unnecessary resonance around speakers. The TLA series is designed to be one with the TLA-181 Sub-Woofer.


TLA 12 Perfect line source system

* Large concert hall.

* Auditorium and theater.

* Interior and outdoor festivals

* Stadium

SPECIFICATIONS

Model: TLA-12 (Dual 12″ 2way full range line source system)

Power Capacity: 800W RMS / 1600W Program

Nominal impedance: 8 Ohm

Frequency response: 43~19KHz

Average Sensitivity: 113dB

Calculated Maximum(SPL/1m): 148dB (1box)

Nominal Directivity(-6dB): 110°(H) x 5°(v) a bove 750Hz

Low Frequency driver: Custom made 2×12″ Beyma driver / Neodymium magnet, 4” Titanium Voice coil

High Frequency driver: Custom made 2×3 Beyma driver / Neodymium magnet, 3” Titanium Voice coil

Flying hardware: Integrated Rigging

Connectors: 2x NEUTRIK Speakon® NL4MP (1+/1-)

Cabinet: CNC made with tongue and grove assembly 18&25mm birch plywood

Finish: Touring grade textured black mat rubberized coating

Size: (WxHxD) 975 x 360 x 460mm

Weight: 46kg net, 52kg gross
