AK Series

Characteristics of AK Series are medium and large size compression driver, powerful magnet power, surround and low pitch unit for enduring such strong power, and deep and punching sound naturally expressing the whole frequency without biased on a certain frequency. Detailed network design made under tests for a long time provides excellent acoustic sound performance without getting lost in rich low pitched sounds. This allows audiences to immerse in the natural and clear performance. In addition, an enclosure made with plywood for specially bonded speaker is our special technology for controlling unnecessary resonance from speaker’s overtone.

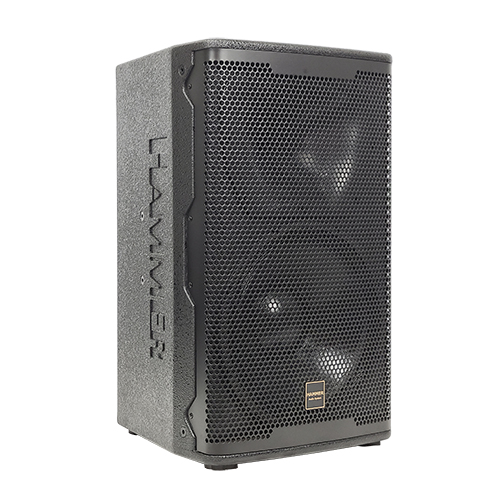

AK-12B

12 inch 2 way
450W (RMS)
129dB (Max)
80º * 70º

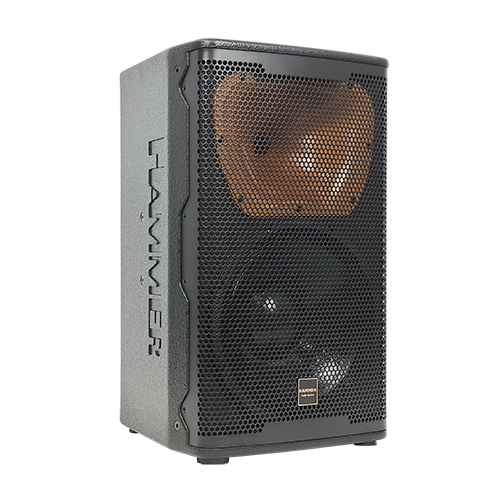

AK-12G

12 inch 2 way
450W (RMS)
129dB (Max)
80º * 70º

AK-15

15 inch 2 way
500W (RMS)
133dB (Max)
80º * 70º

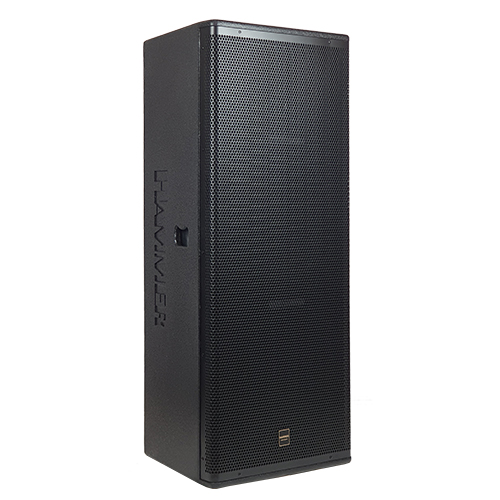

AK-25

Duel 15 inch
1000W (4Ω) (RMS)
134dB (Max)
90º * 50º

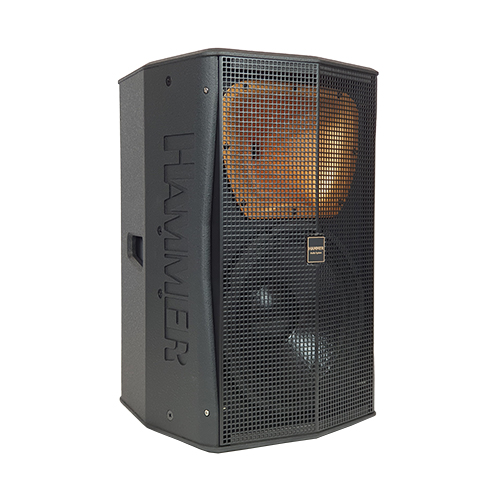

AK-12NT

12 inch 2 way
450W (RMS)
129dB (Max)
80º * 70º

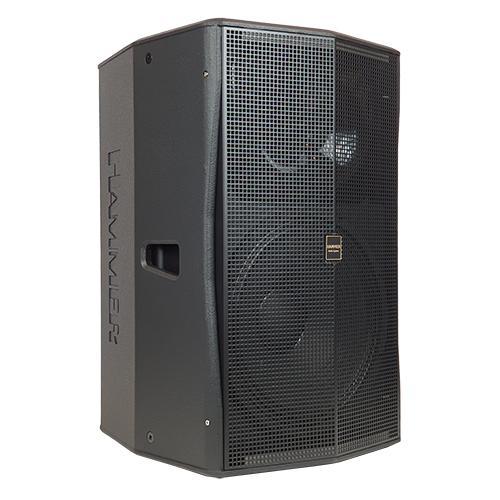

AK-15NT

15 inch 2 way
450W (RMS)
133dB (Max)
80º * 70º

AK-15B

15 inch Subwoofer
500W (RMS)
134dB (Max)
Back Road horn

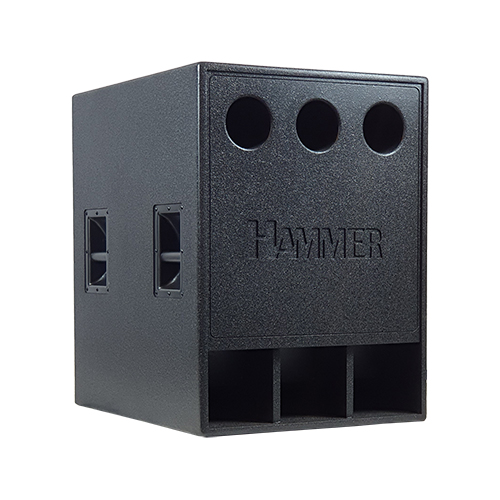

AK-18B

18 inch Subwoofer
600W (RMS)
136dB (Max)
Back Road horn

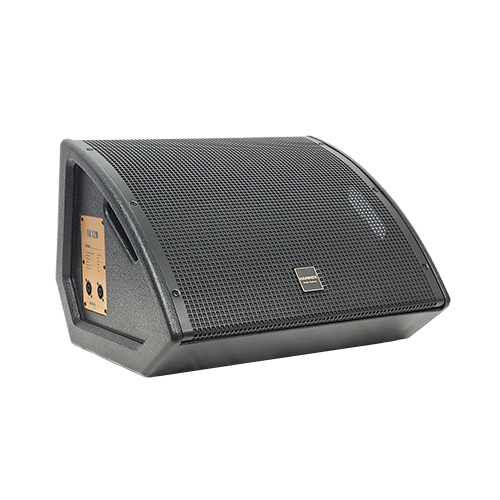

AK-12M

12 inch Coaxial
400W (RMS)
128dB (Max)
90º * 90º

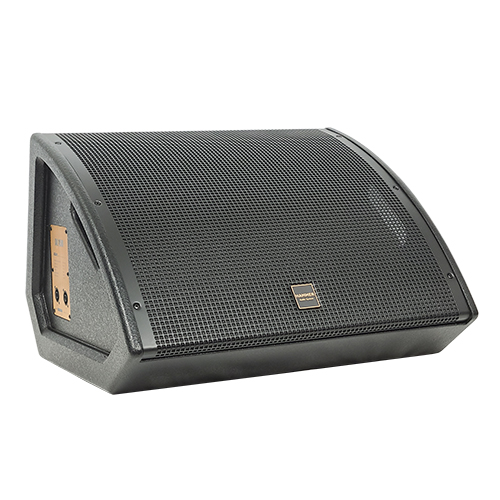

AK-15M

12 inch Coaxial
500W (RMS)
130dB (Max)
90º * 90º
