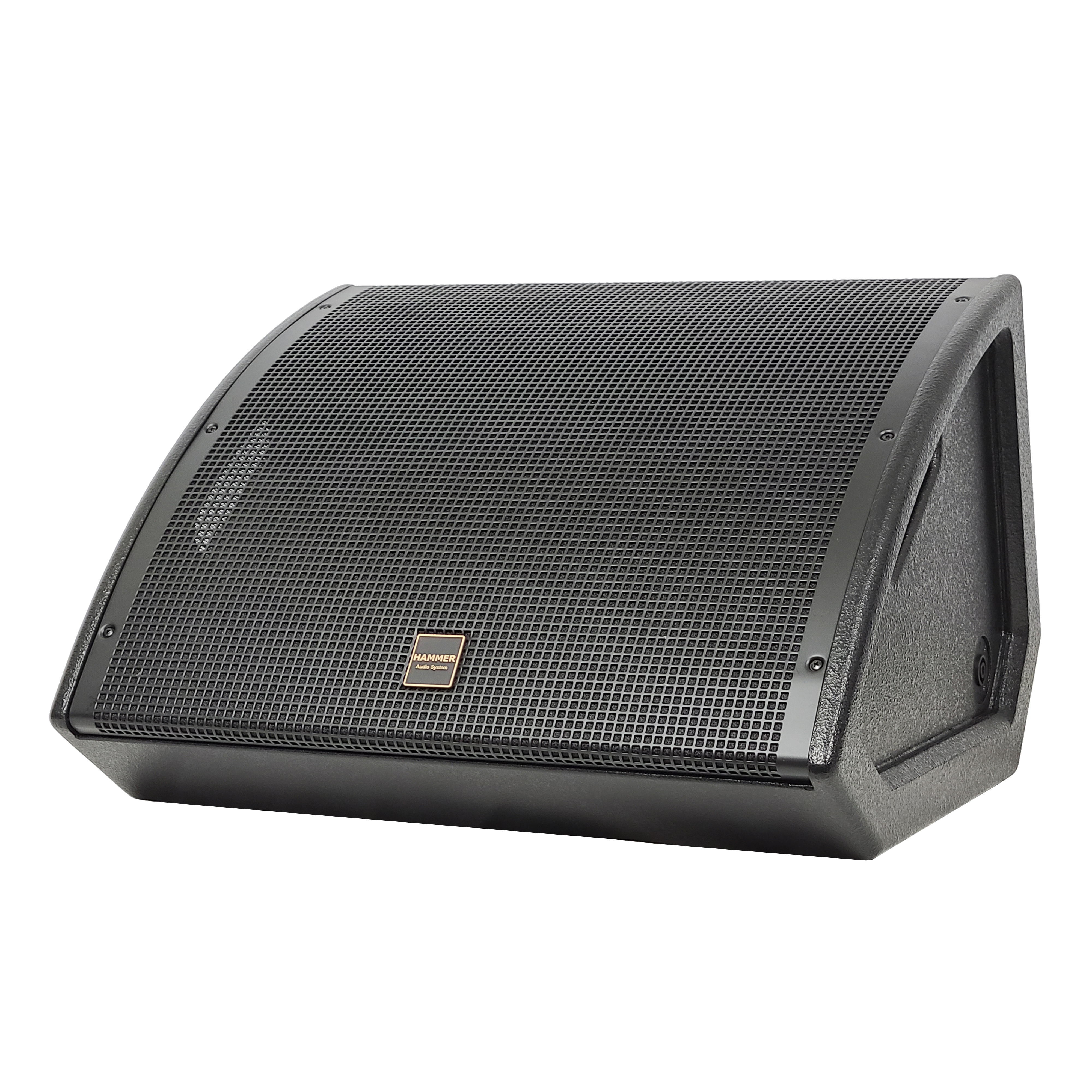

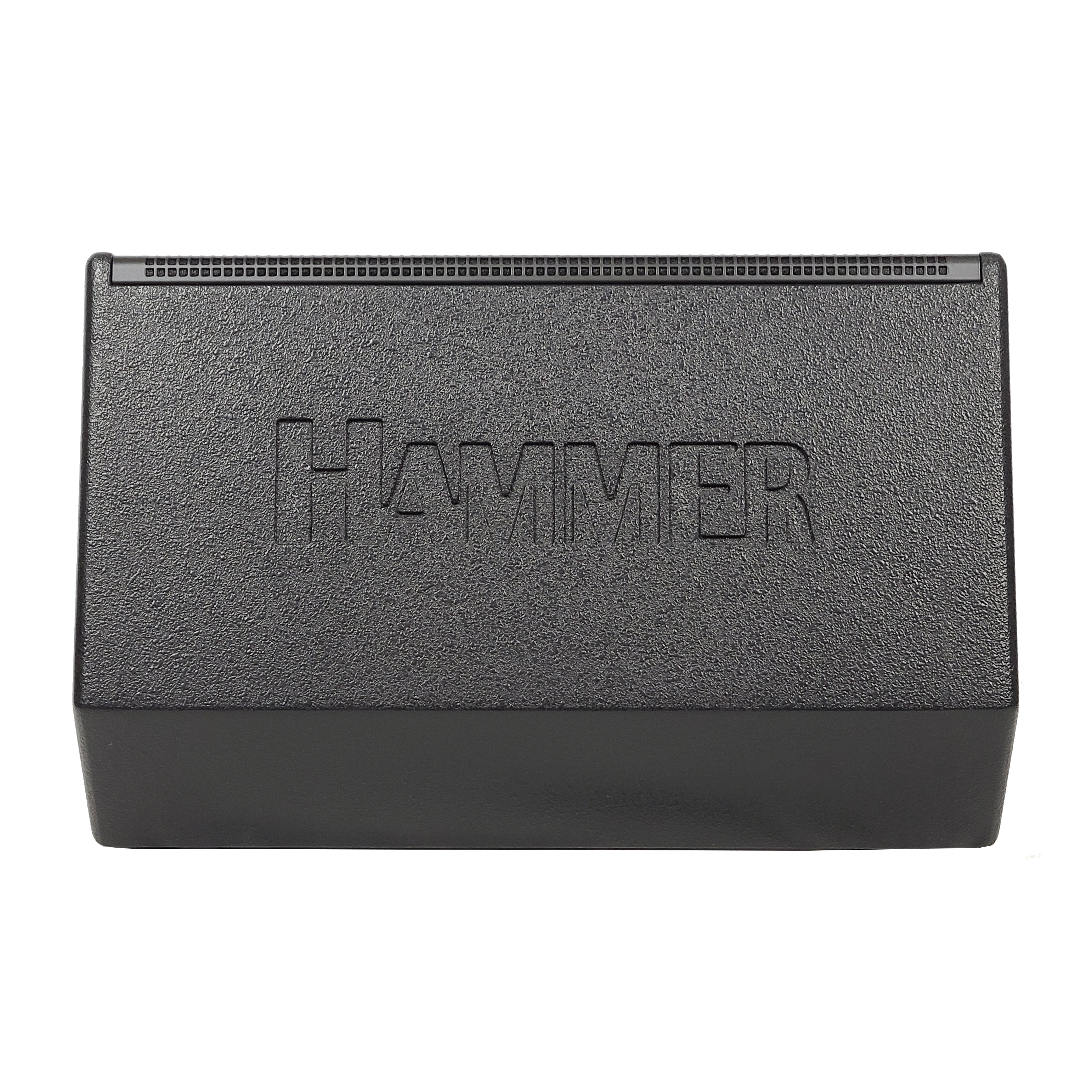

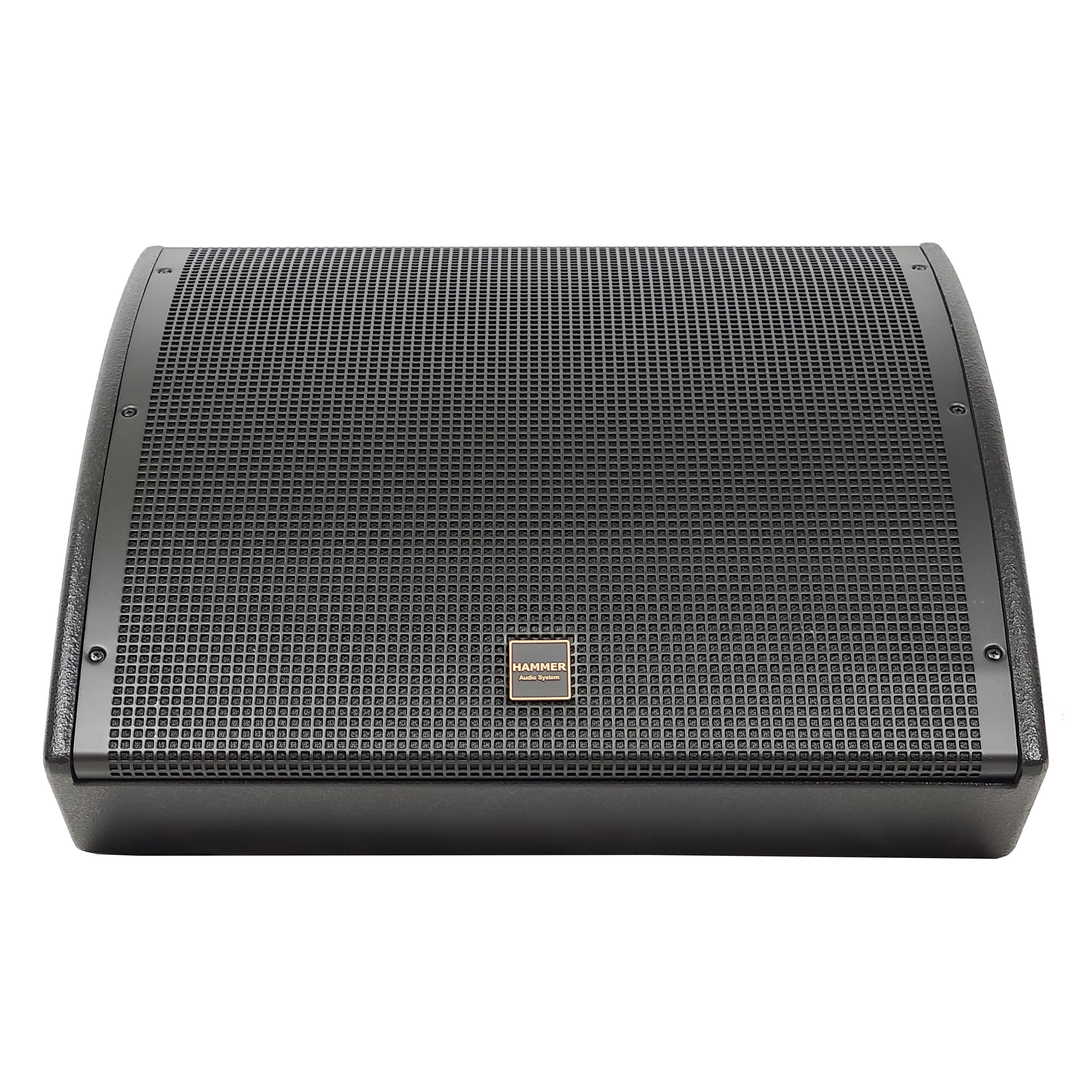

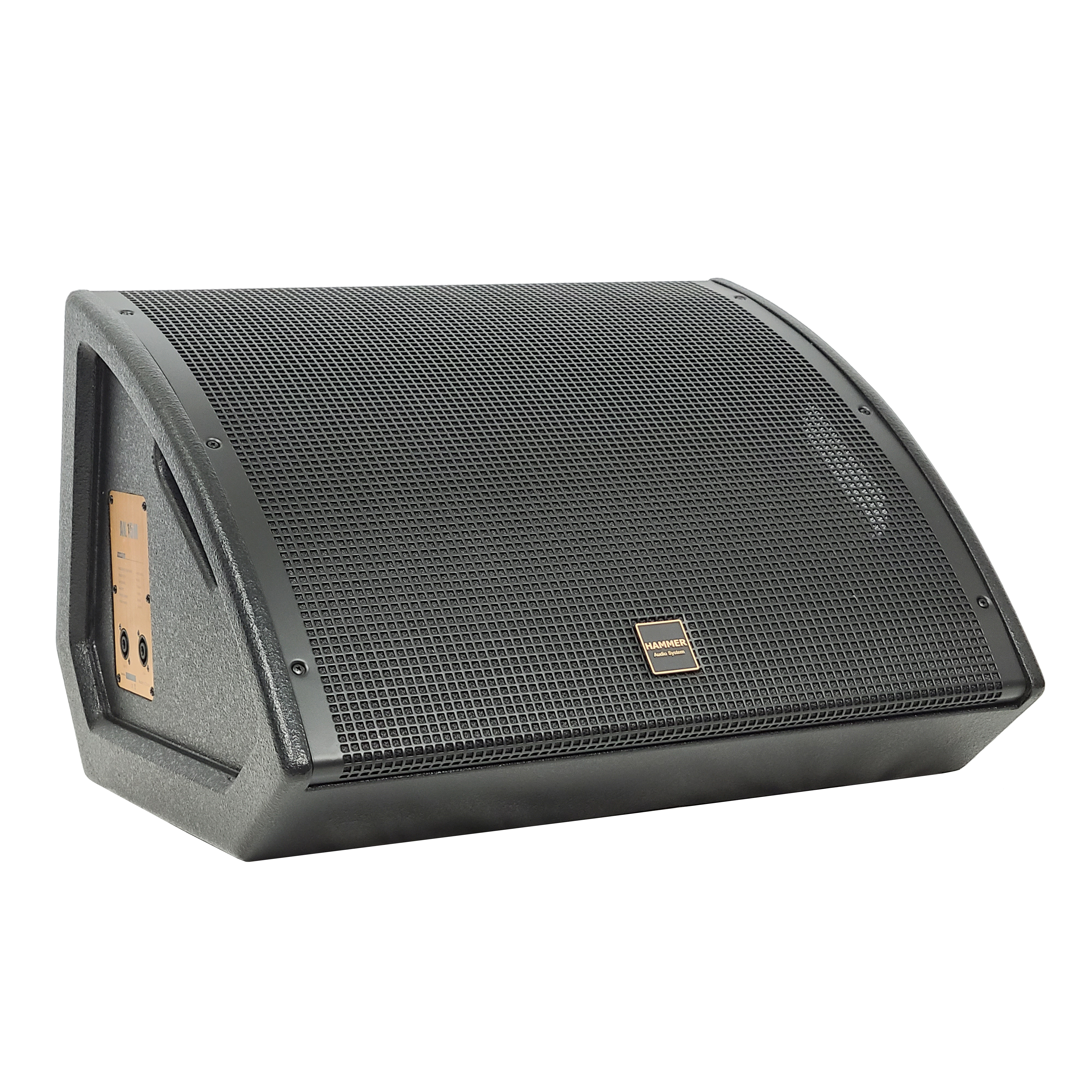

AK 15M

AK monitor speaker shows the essence of ‘Coaxial” monitor. Clear Mid-Hi frequency range allows musicians to hear their performance clearly and delivers the whole sound as it is without distortion. The price is relatively cheap for the world’s best performance. It is applied with a large 190mm magnet and 3”composite compression driver to provide high-quality monitor environment to the stage.

* Performance stage

* Music Club

* Church

* Conference

SPECIFICATIONS

Model: AK-15M (15″ Coaxial Monitor system)

Power Handling: 500W (Cont) / 1000W (Prog)

Frequency Range: 42Hz -19KHz

Frequency Response: 48Hz -18KHz

Average Sensitivity: 99dB(W/m)

Max SPL: 130dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 90º(H) x 90º(V)

Compression Driver: 75mm(3″) Voice Coil, 1.75″ exit

Woofer: 15″ woofer, 190mm Magnet

Connectors: 3 x Speakon® NL4MP (1+/1- Input &Link)

Enclosure: CNC made with tongue and grove assembly 17mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 580(W) × 390mm(H) × 510mm(D)

Weight: 21 kg
