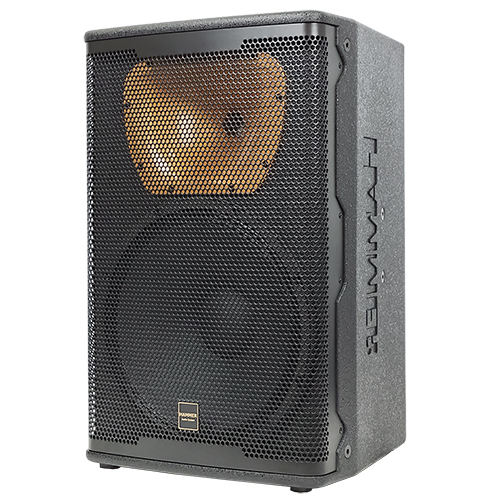

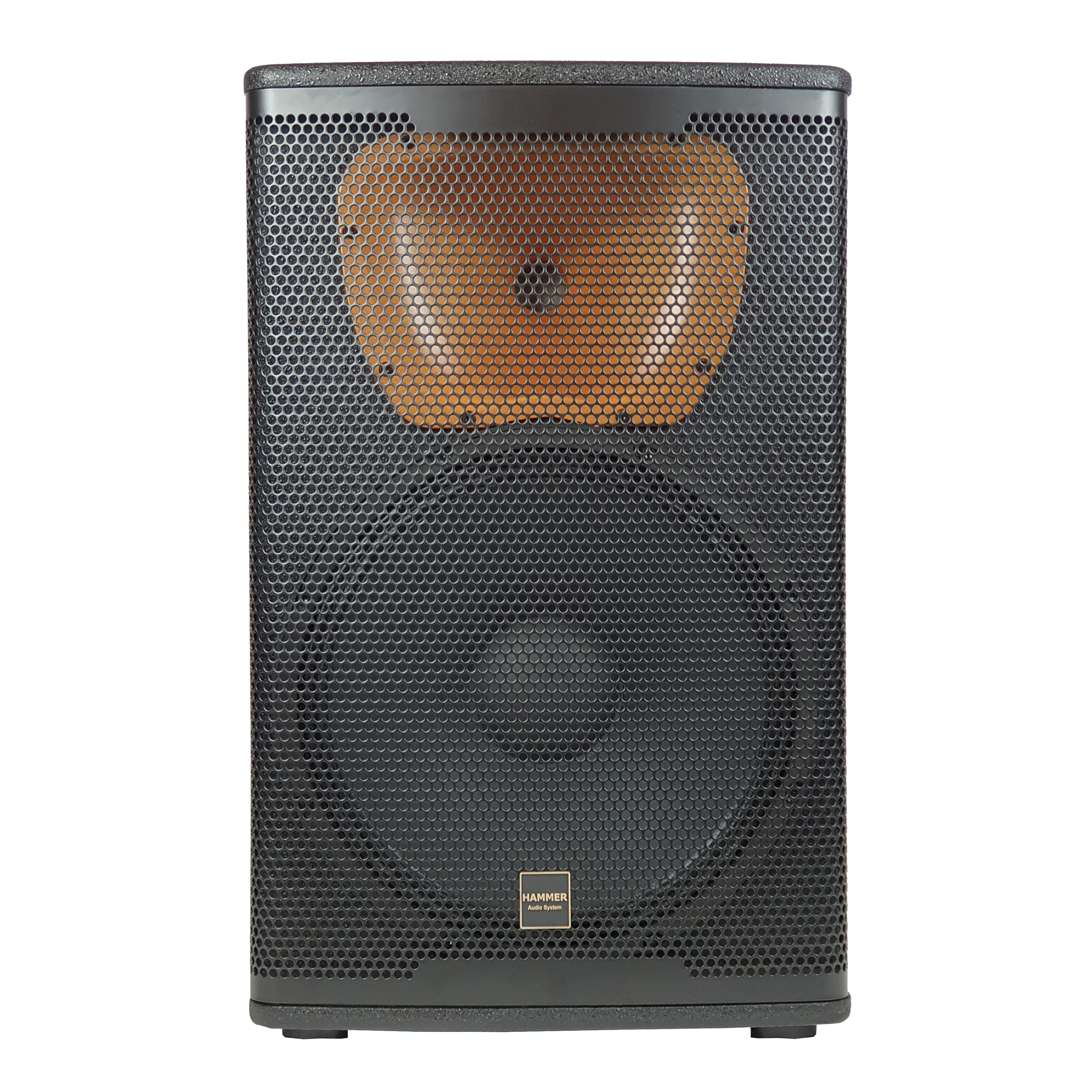

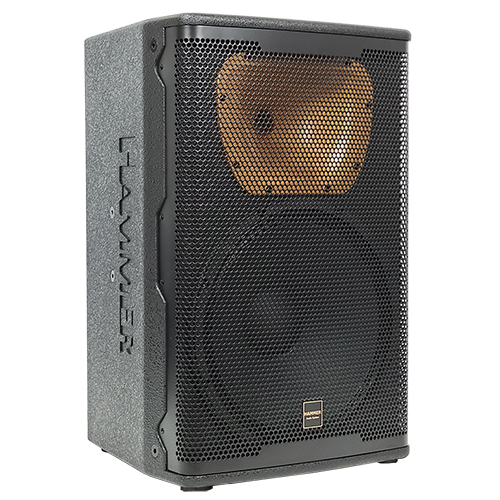

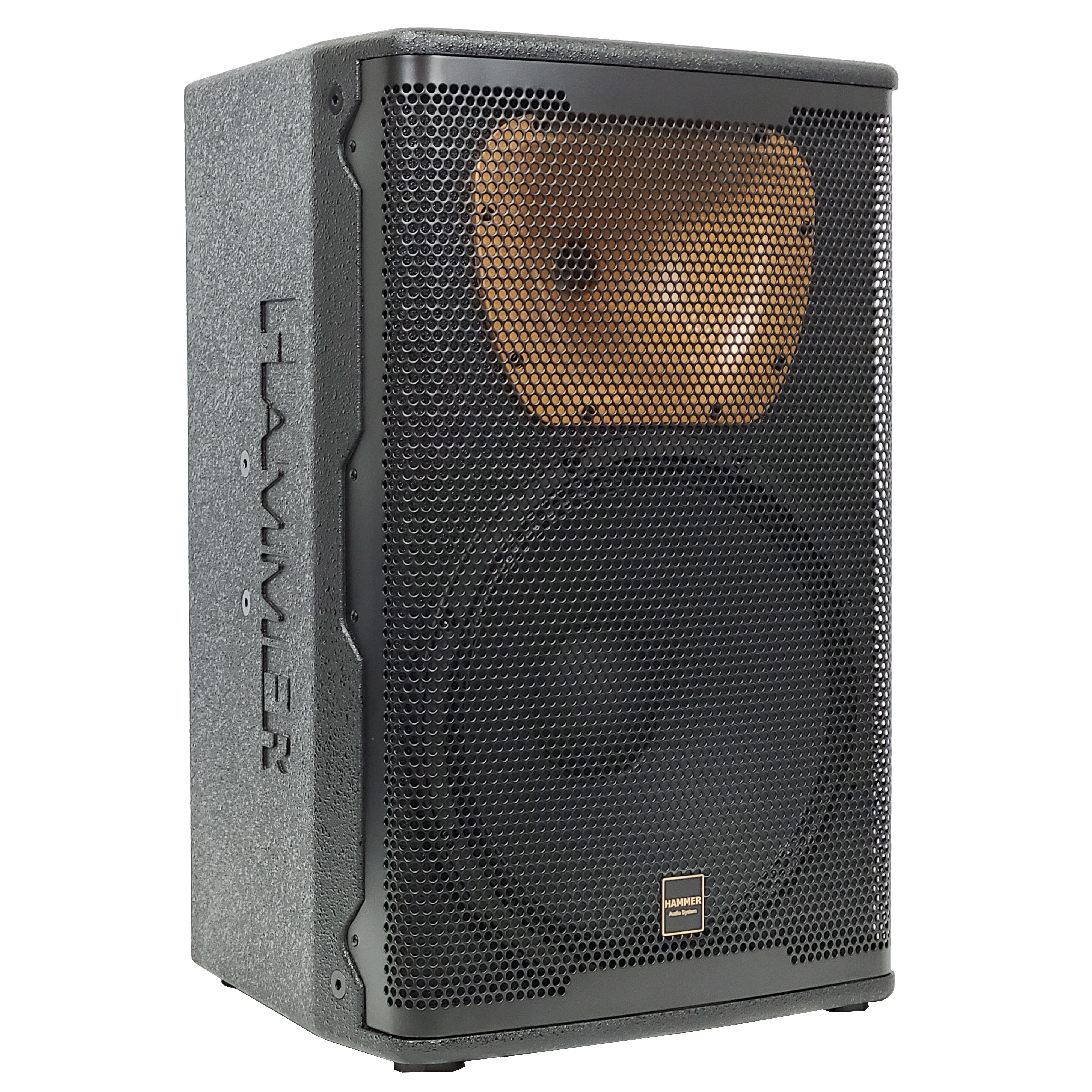

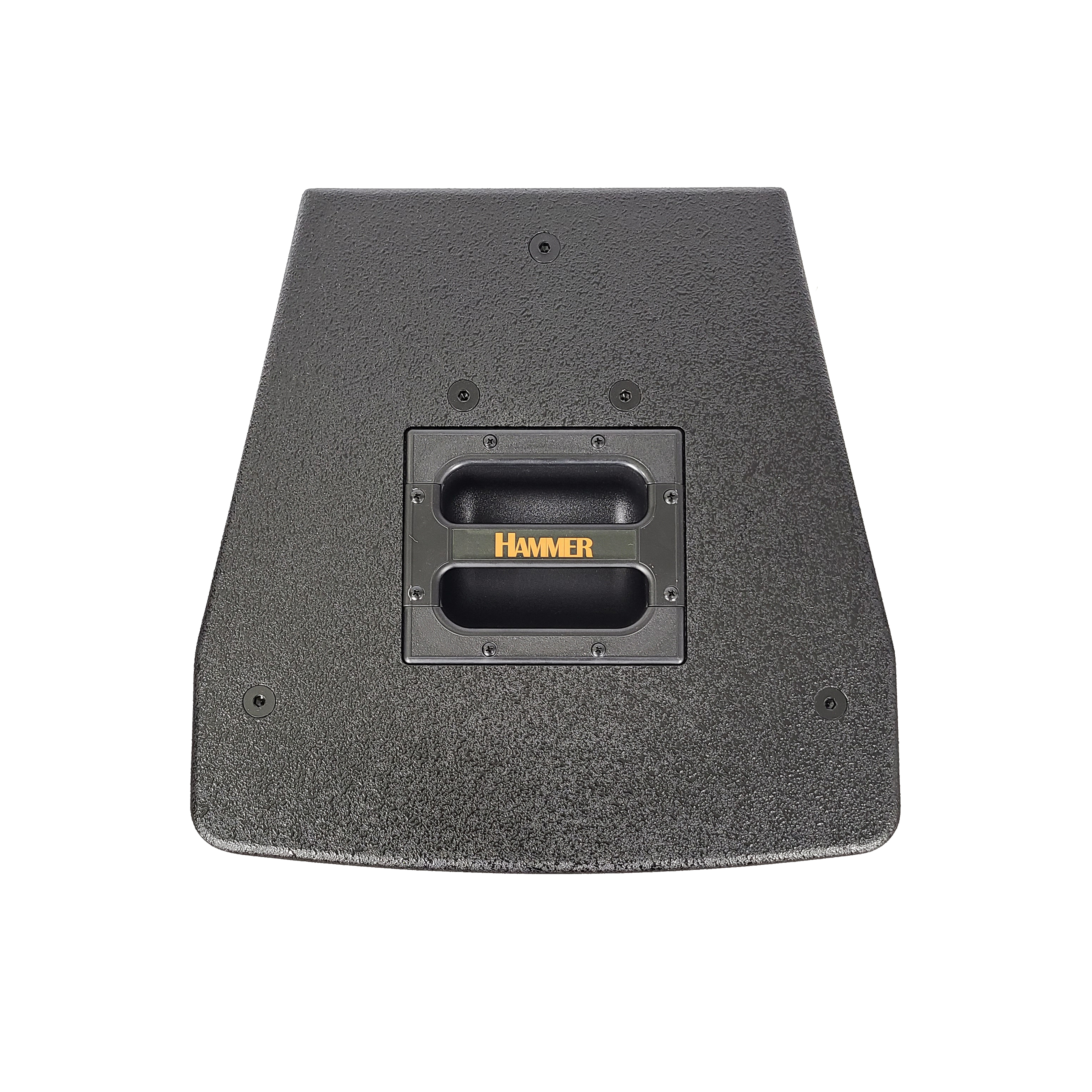

AK 15

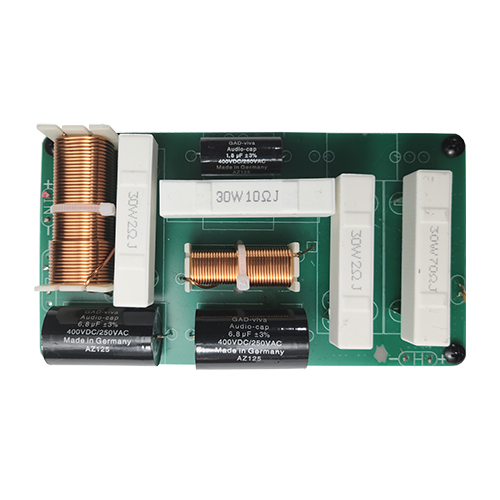

Characteristics of AK Series are medium and large size compression driver, powerful magnet power, surround and low pitch unit for enduring such strong power, and deep and punching sound naturally expressing the whole frequency without biased on a certain frequency. Detailed network design made under tests for a long time provides excellent acoustic sound performance without getting lost in rich low pitched sounds. This allows audiences to immerse in the natural and clear performance. In addition, an enclosure made with plywood for specially bonded speaker is our special technology for controlling unnecessary resonance from speaker’s overtone.

* Performance stage

* Music Club

* Church

* Conference

SPECIFICATIONS

Model: AK-15 (15″ 2way full range system)

Power Handling: 500W (Cont) / 1000W (Prog) / 2000 (Peak)

Frequency Range: 35Hz -20KHz

Frequency Response: 43Hz -20KHz

Average Sensitivity: 100dB(W/m)

Max SPL: 133dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 80º(H) x 70º(V)

Low Frequency Driver: 100mm(4″) Compression driver Coil / 380mm(15″) woofer / 190mm Magnet

High Frequency Driver: 75mm(3″) Compression driver Coil

Flying Hardware: 20 x M10 points

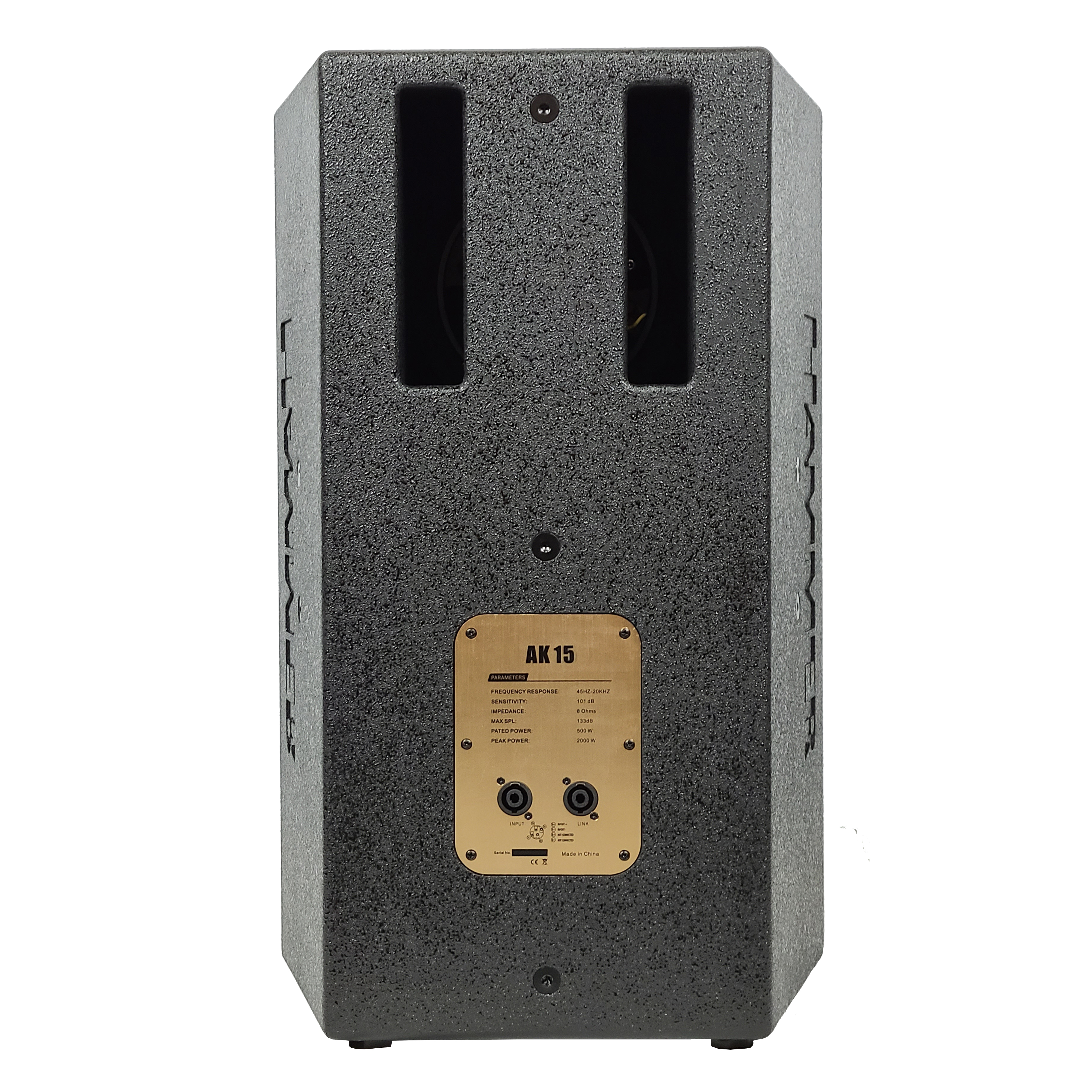

Connectors: 2 x Speakon® NL4MP (1+/1- Input & Link)

Pole Mount: 35mm pot

Enclosure: CNC made with tongue and grove assembly 18mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 430mm(W)×685mm(H)×420mm(D)

Weight: 29.7kg net
