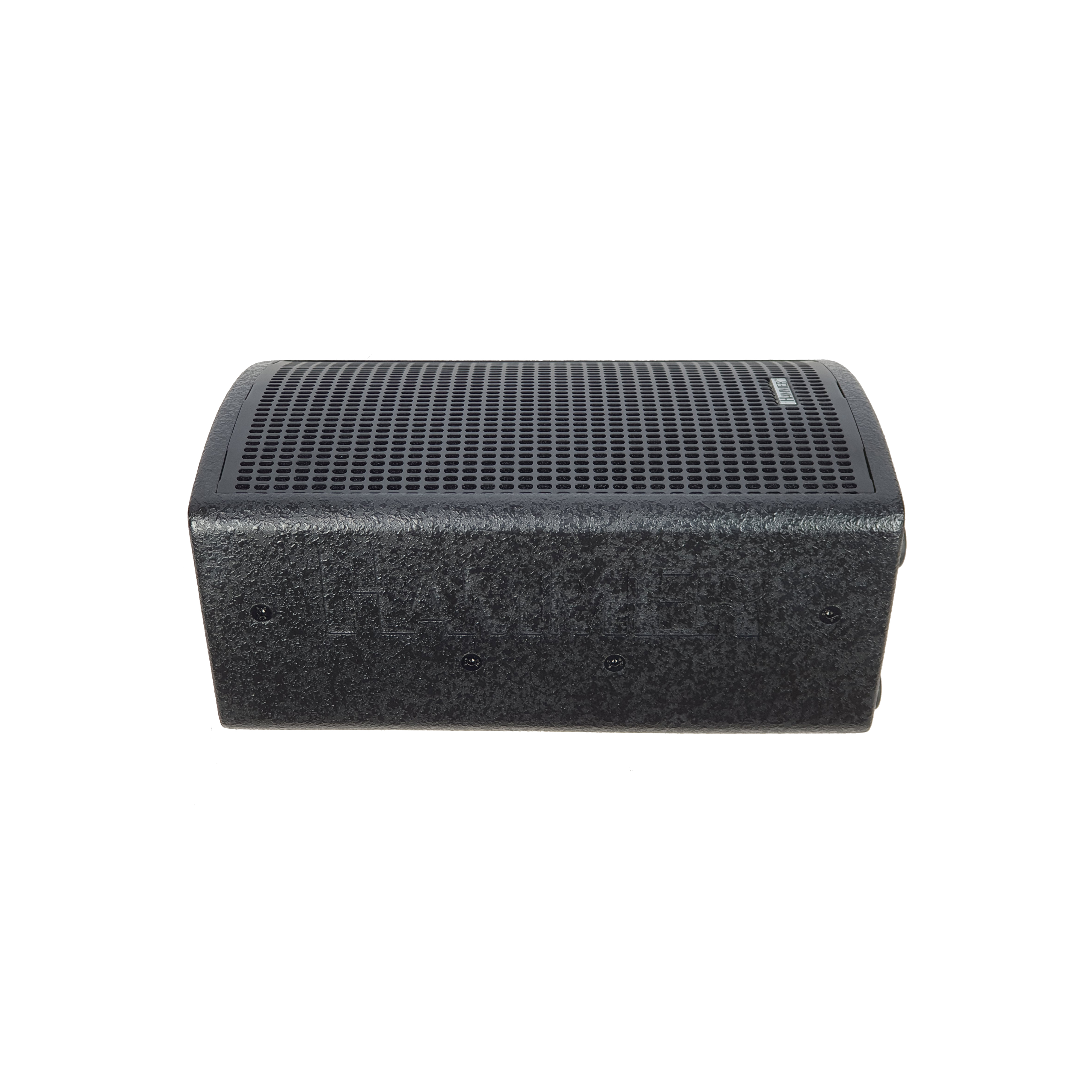

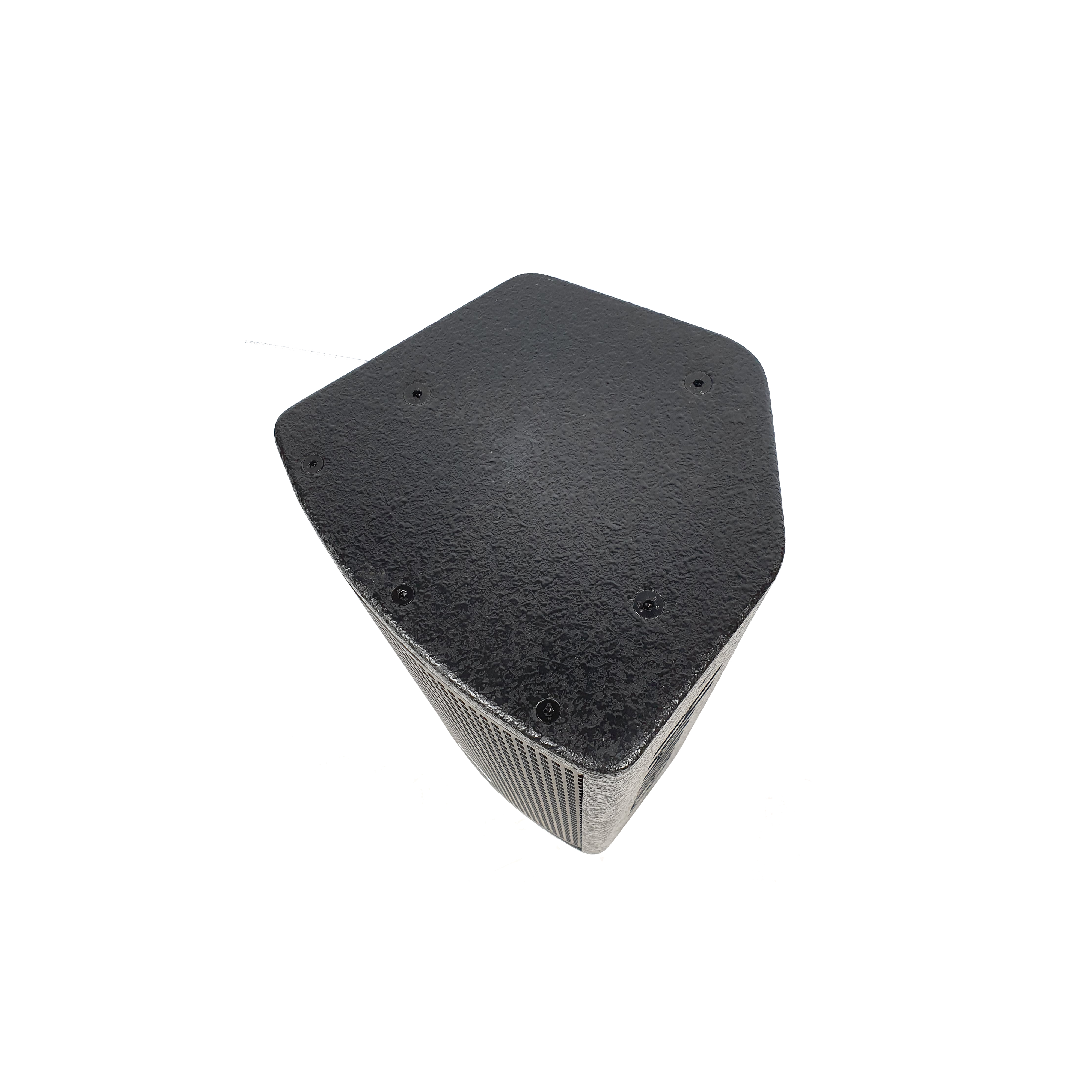

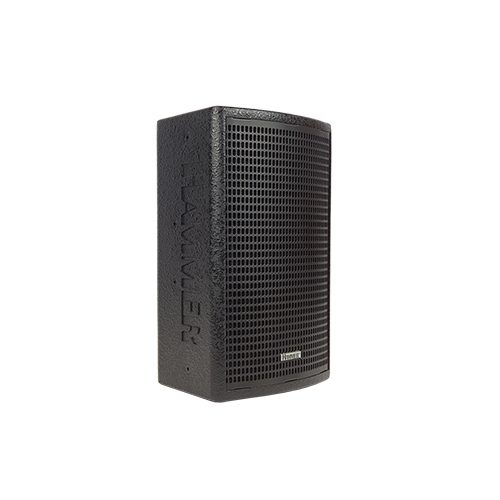

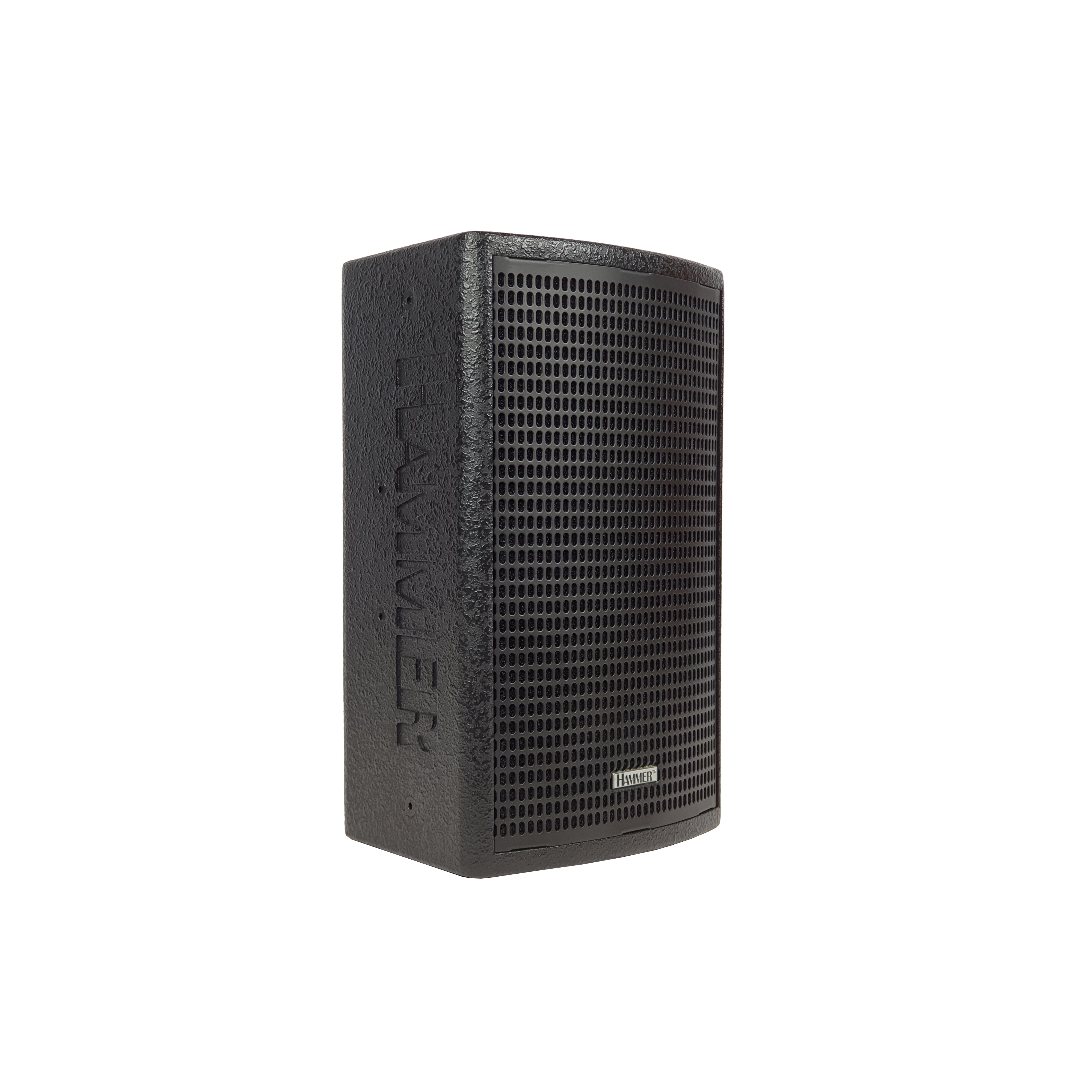

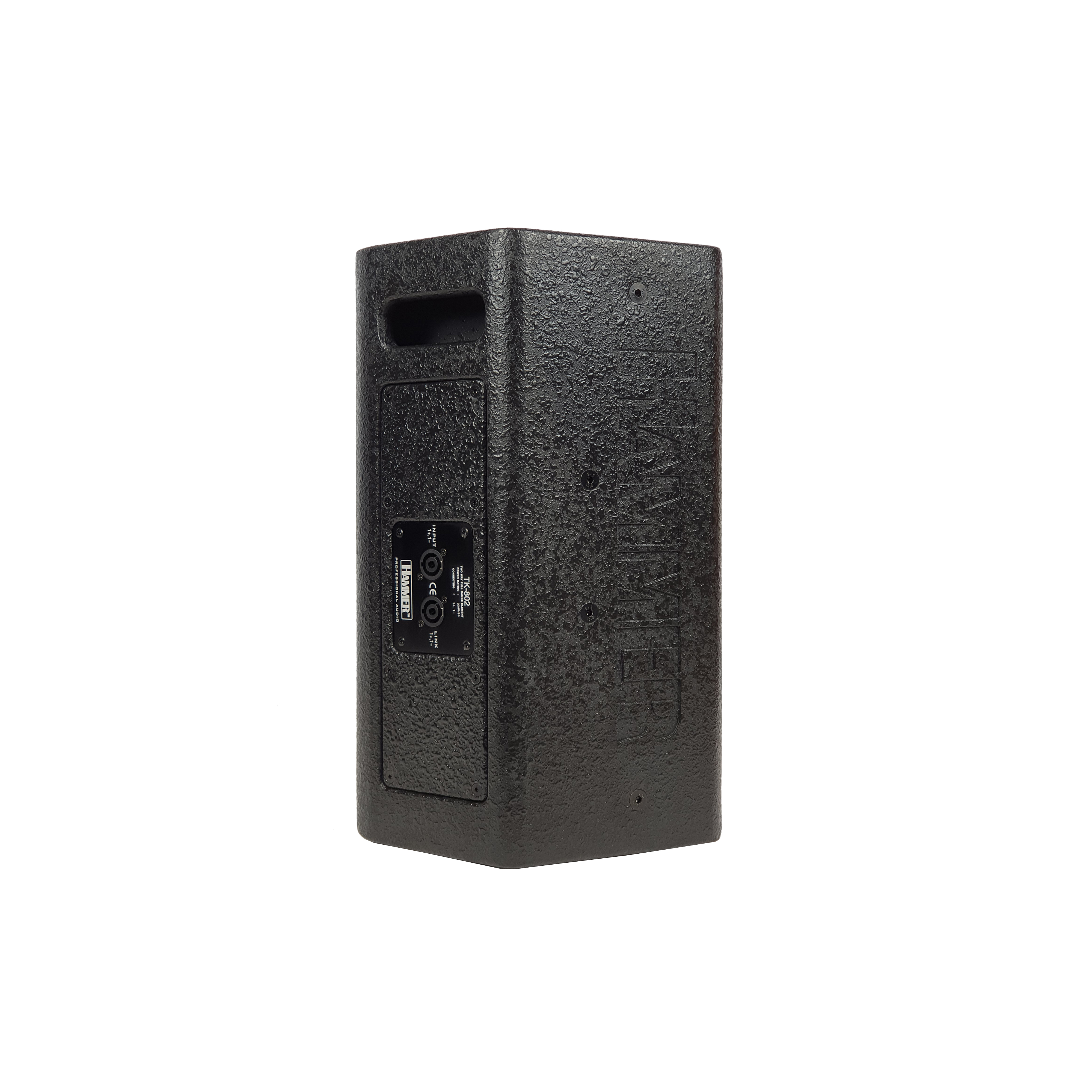

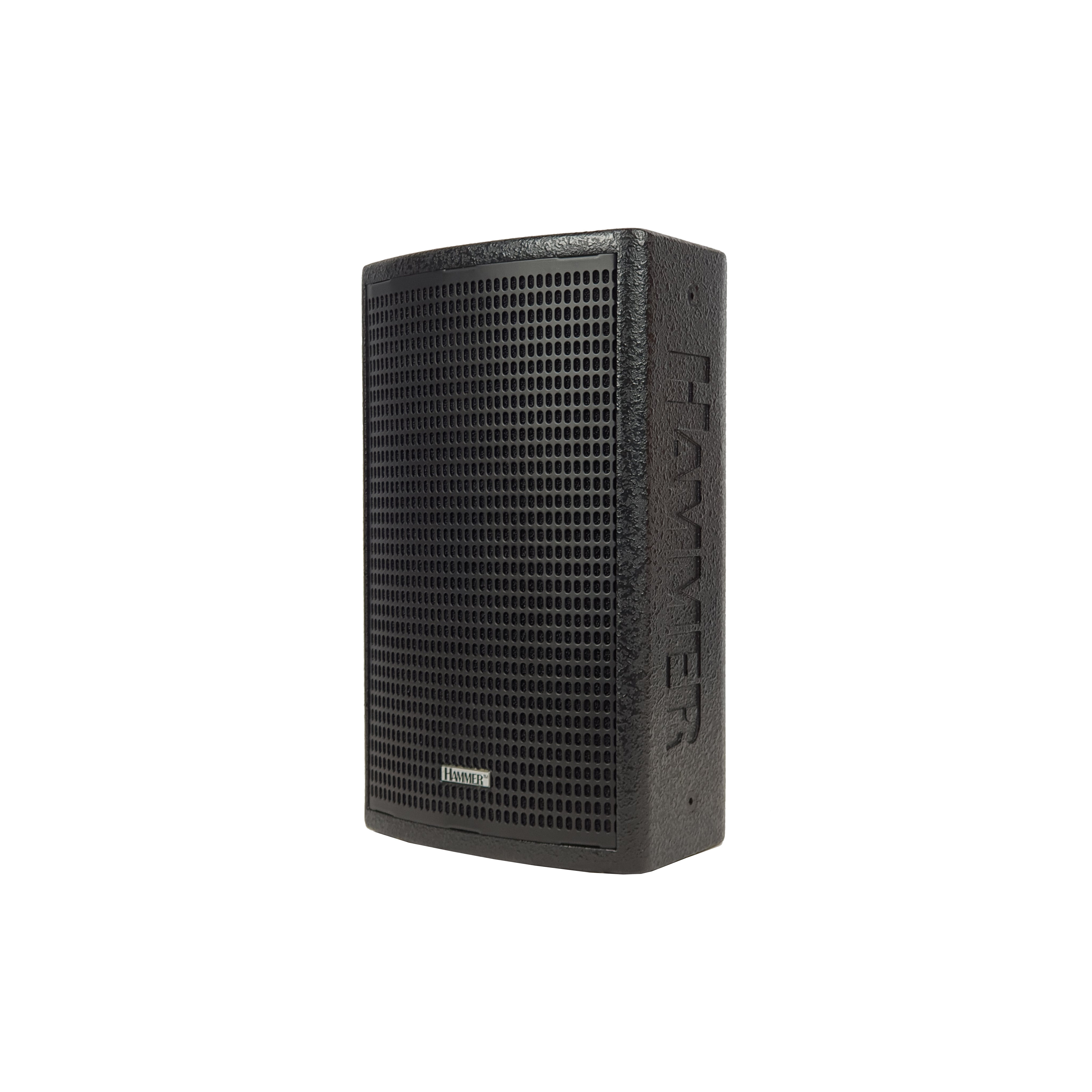

TK 802

is specially designed for small medium-size concert halls. They feature perfect low-pitched sound playing from 2” (50mm) titanium driver and powerful magnet. In particular, the low-pitched unit designed by our own special coating remains intact without any transformation over time, and it is designed to have the excellent performance in spite of an amplifier’s degradation. In addition, its 1.4” titanium-compressed driver applied in medium and upper range and network design superiorly play sounds in order for audiences to be able to be fascinated by acoustic performance surrounded by plentiful low-pitched sounds and natural and clear performance. Also, an enclosure designed with specially-bonded plywood doesn’t generate unnecessary resonance around speakers.



*  Small Performance stage

*  Music Club

*  Movie theater

*  Conference

*  Church

SPECIFICATIONS

Model: TK-802 (8″ 2way full range system)

Power Handling: 200W (Cont) / 400W (Prog) / 800 (Peak)

Frequency Range: 50Hz -20KHz

Frequency Response: 58Hz -19KHz

Average Sensitivity: 95dB(W/m)

Max SPL: 116dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 90º(H) x 50º(V) Horn Rotable

Low Frequency Driver: Titanium Diaphragm 50mm(2″) Coil / 200mm(8″) woofer

High Frequency Driver: Titanium diaphragm 34mm(1.4″) Coil Compression driver

Flying Hardware: 20 x M8 points

Connectors: 2 x Speakon® NL4MP (1+/1- Input & Link)

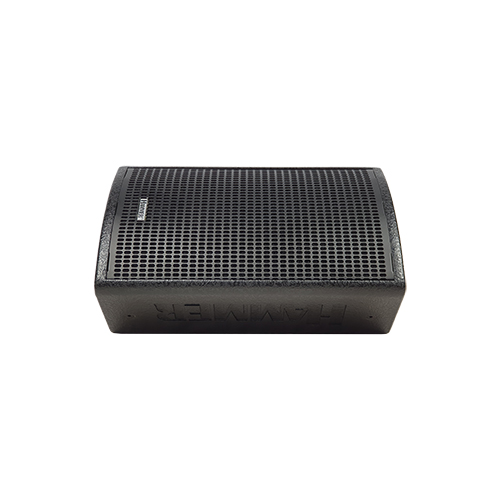

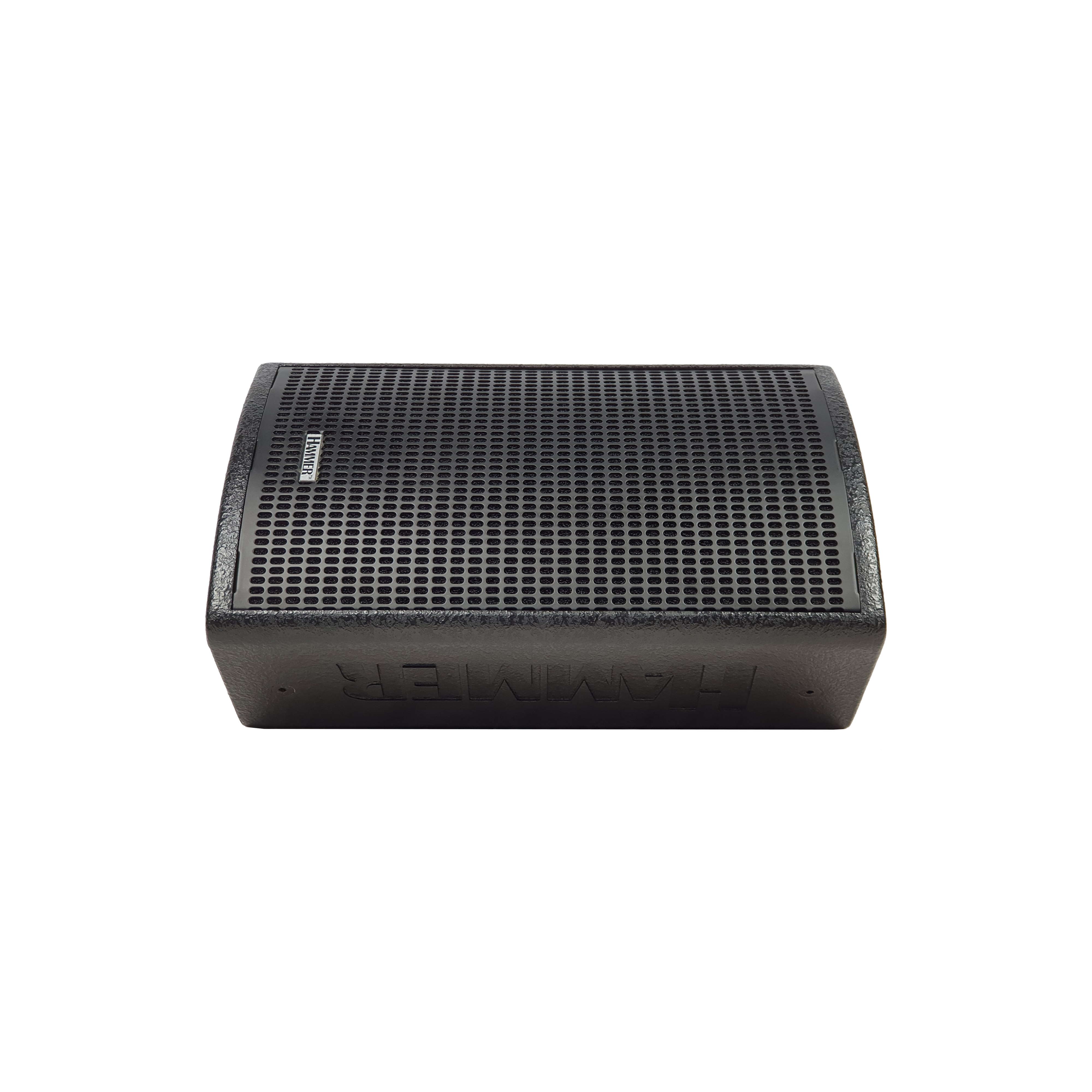

Floor Monitor Use: Yes, 2 angles.

Pole Mount: 35mm pot

Enclosure: CNC made with tongue and grove assembly 17mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 288mm(W)×477mm(H)×275mm(D)

Weight: 15.5kg net
