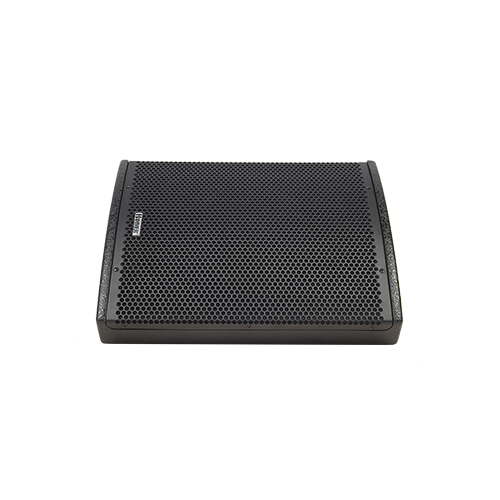

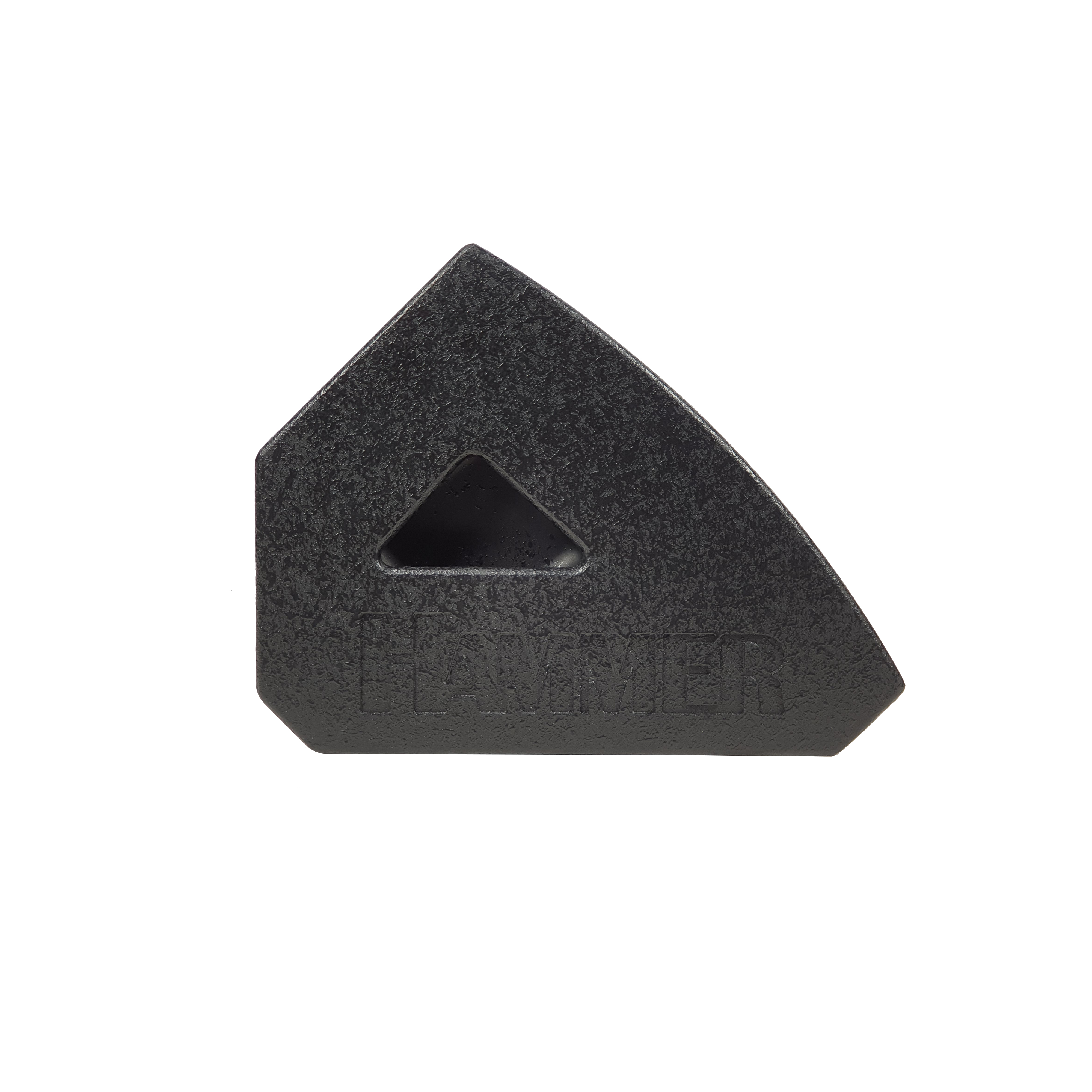

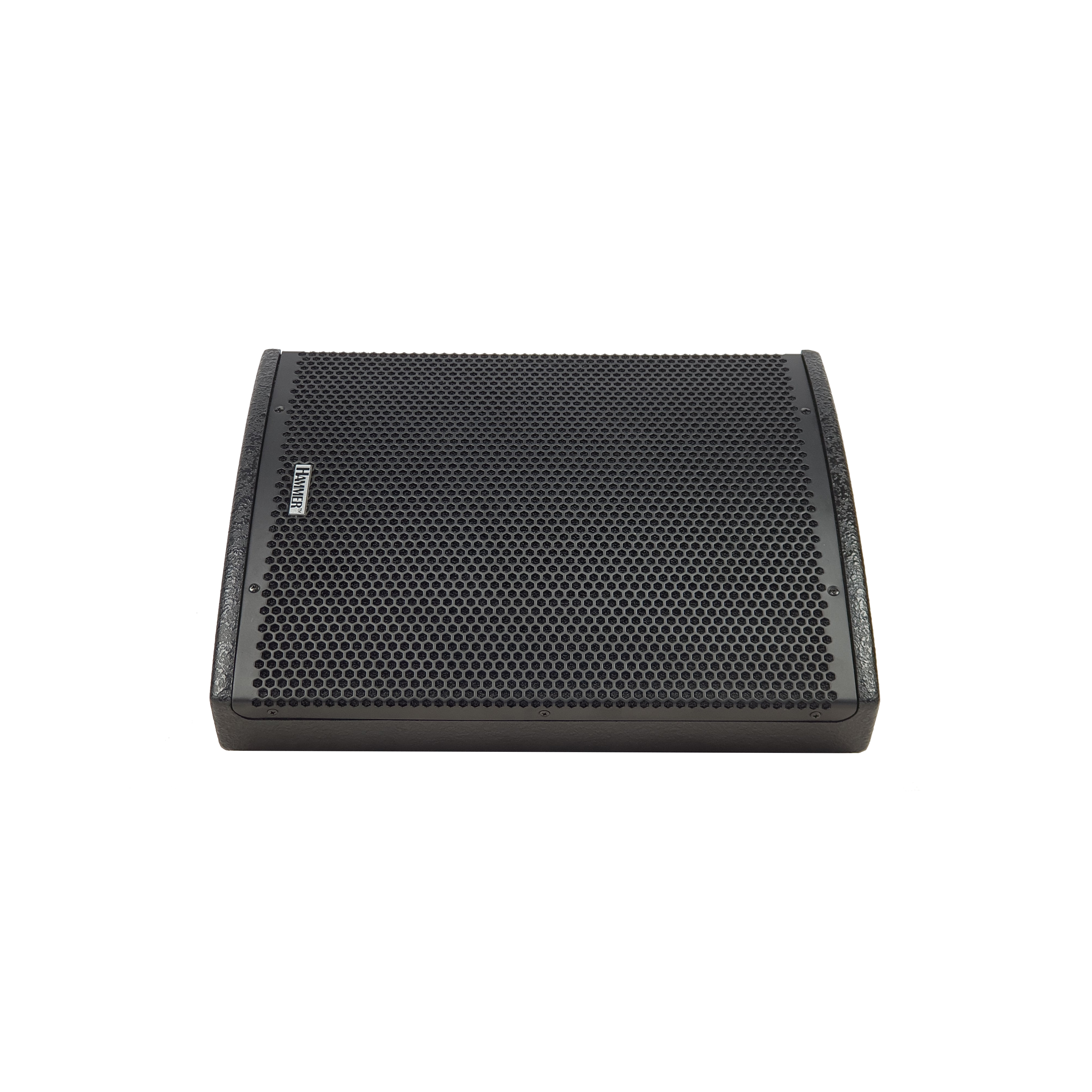

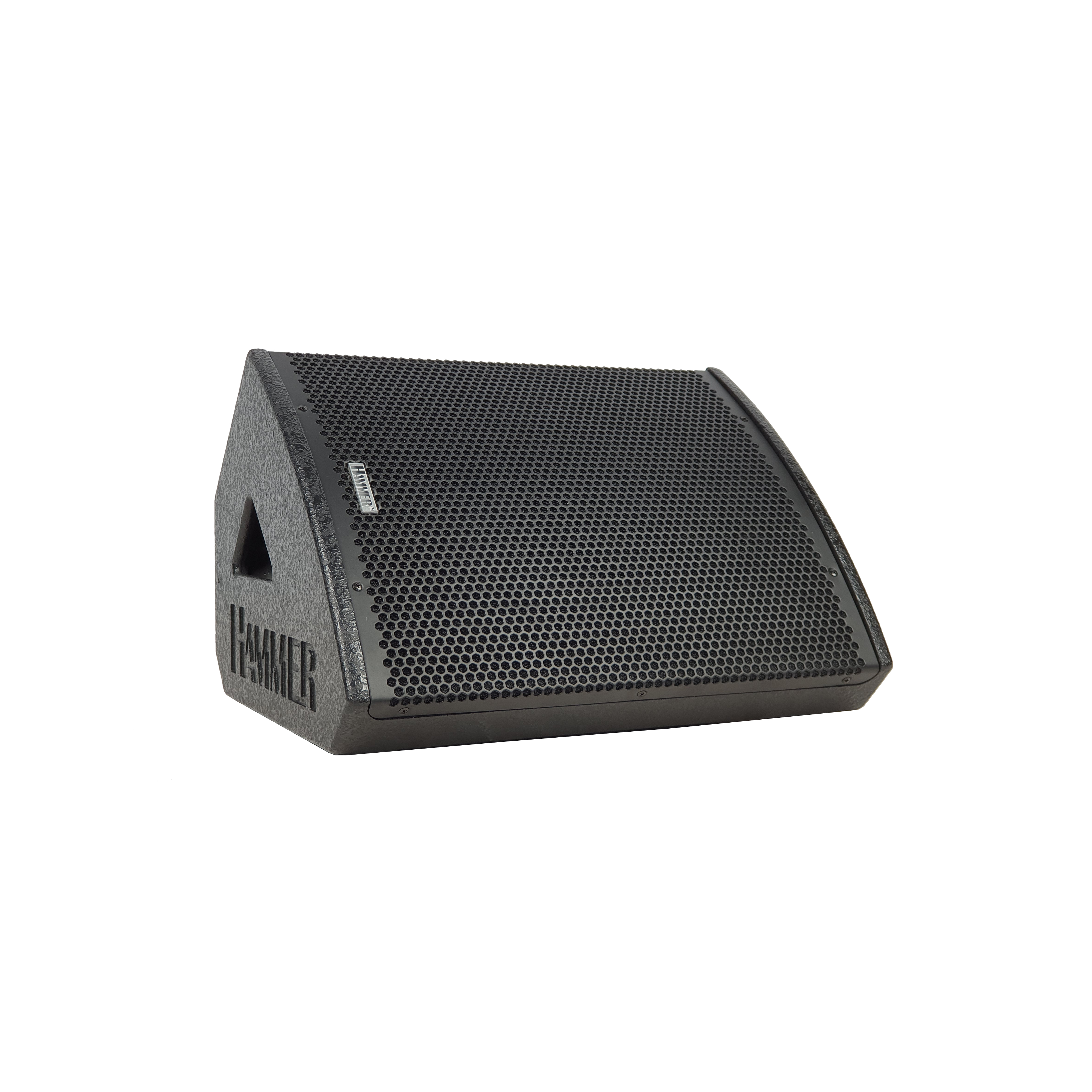

TK 10M

and TK monitor speakers provide solid and deep base sounds that have never been heard from other monitors. Their medium-to-high frequency range applied with 3” titanium-compressed driver establishes the best monitoring environment for professional performers with clear and even sound pressure. Also, an enclosure designed with specially-bonded plywood controls unnecessary resonance for stages.



* Performance stage

* Music Club

* Church

* Conference

SPECIFICATIONS

Model: TK-10M (10″ Coaxial Monitor system)

Power Handling: 250W (Cont) / 500W (Prog) / 1000 (Peak)

Frequency Range: 45Hz -20KHz

Frequency Response: 58Hz -19KHz

Average Sensitivity: 98dB(W/m)

Max SPL: 123dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 80º

Low Frequency Driver: Titanium Diaphragm 65mm(2.5″) Coil / 260mm(10″) woofer

High Frequency Driver: Titanium diaphragm 34mm(1.4″) Coil Compression driver

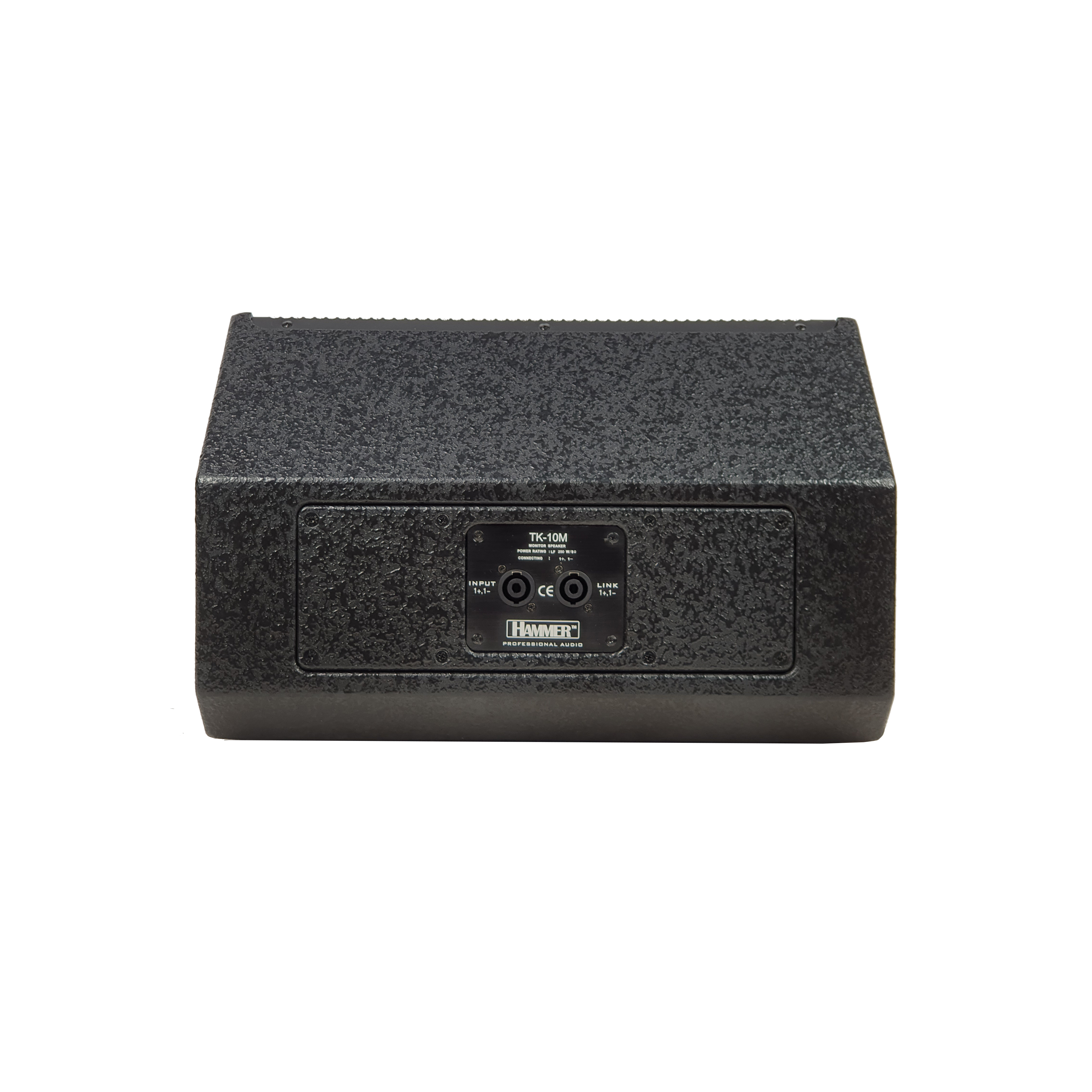

Connectors: 2 x Speakon® NL4MP (1+/1- Input & Link)

Enclosure: CNC made with tongue and grove assembly 15mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 356mm(W)×447mm(H)×293mm(D)

Weight: 13kg net
