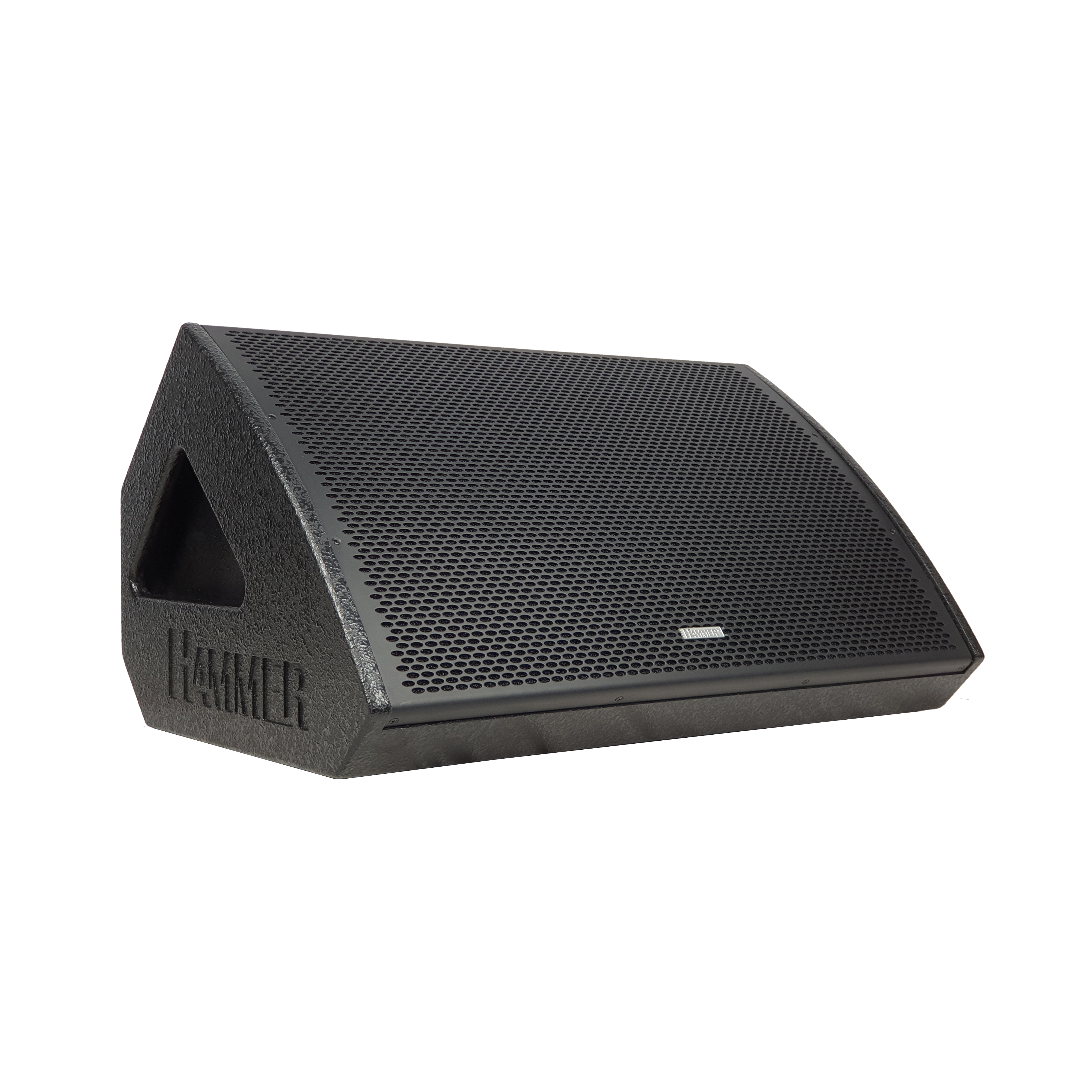

TK - 152M

TK monitor speakers provide solid and deep base sounds that have never been heard from other monitors. Their medium-to-high frequency range applied with 3” titanium-compressed driver establishes the best monitoring environment for professional performers with clear and even sound pressure. Also, an enclosure designed with specially-bonded plywood controls unnecessary resonance for stages.



* Performance stage

* Music Club

* Church

* Conference

SPECIFICATIONS

Model: TK-152M (15″ 2way full range Monitor system)

Power Handling: 450W (Cont) / 900W (Prog) / 1800 (Peak)

Frequency Range: 35Hz -20KHz

Frequency Response: 45Hz -19KHz

Average Sensitivity: 102dB(W/m)

Max SPL: 130dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 70º(H) x 45º(V) Horn Rotable

Low Frequency Driver: Titanium Diaphragm 100mm(4″) Coil / 380mm(15″) woofer

High Frequency Driver: Titanium diaphragm 75mm(3″) Coil Compression driver

Connectors: 2 x Speakon® NL4MP (1+/1- Input & Link)

Enclosure: CNC made with tongue and grove assembly 17mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 750mm(W)×407mm(H)×522mm(D)

Weight: 34.5kg net
