TK 122M

TK monitor speakers provide solid and deep base sounds that have never been heard from other monitors. Their medium-to-high frequency range applied with 1.75” titanium-compressed driver establishes the best monitoring environment for professional performers with clear and even sound pressure. Also, an enclosure designed with specially-bonded plywood controls unnecessary resonance for stages.

* Performance stage

* Music Club

* Church

* Conference


Model: TK-122M (12″ 2way full range Monitor system)

Power Handling: 400W (Cont) / 800W (Prog) / 1600 (Peak)

Frequency Range: 42Hz -20KHz

Frequency Response: 50Hz -19KHz

Average Sensitivity: 101dB(W/m)

Max SPL: 127dB(PEAK/1M ±3dB)

Nominal Impedance:

Nominal Directivity: 80º(H) x 60º(V) Horn Rotable

Low Frequency Driver: Titanium Diaphragm 75mm(3″) Coil / 310mm(12″) woofer

High Frequency Driver: Titanium diaphragm 44mm(1.75″) Coil Compression driver

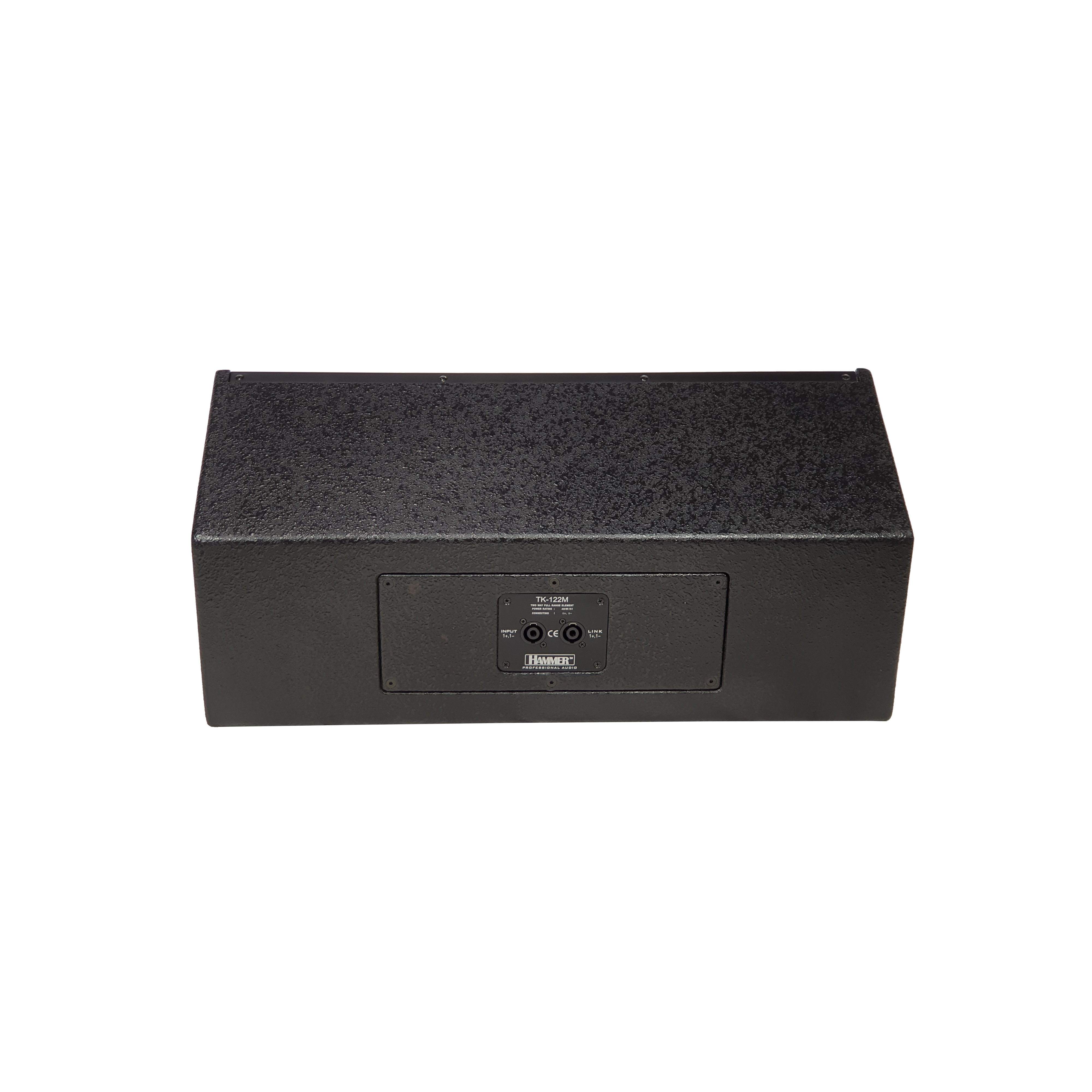

Connectors: 2 x Speakon® NL4MP (1+/1- Input & Link)

Enclosure: CNC made with tongue and grove assembly 17mm birch plywood

Finish: Touring grade textured black Paint coating

Dimensions: 652mm(W)×342mm(H)×482mm(D)

Weight: 22.5kg net
