AK-12MP
AK-powered speakers are the latest technology-applied near-to-perfect D-class amplification output system, which is applied to reinforce low-pitched sound heating amplification that experienced a lack of D-class amplification. Therefore, the 75mm titanium diaphragm is applied into our speakers even though they are a small active speaker system and offers solid and deep base sounds that have never been heard from other powered monitors. Also, their medium-to-high frequency range applied with 1.75” titanium-compressed driver establishes the best monitoring environment for professional performers with clear and even sound pressure.
* Performance stage
* Musis Club
* Church
* Conference
SPECIFICATIONS

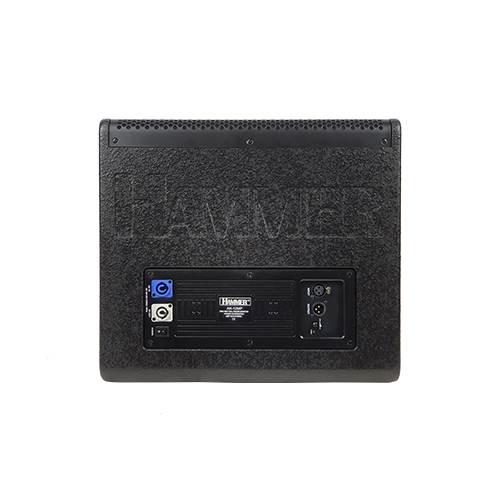

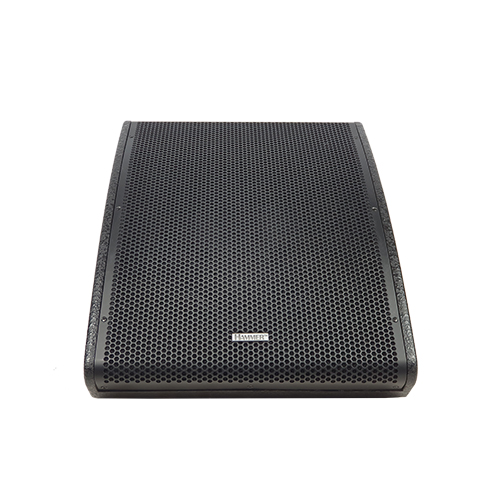

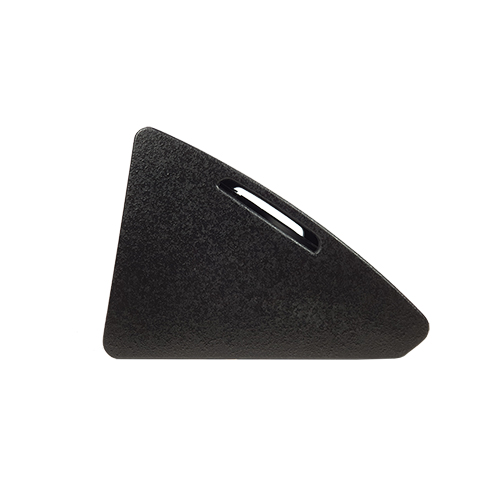

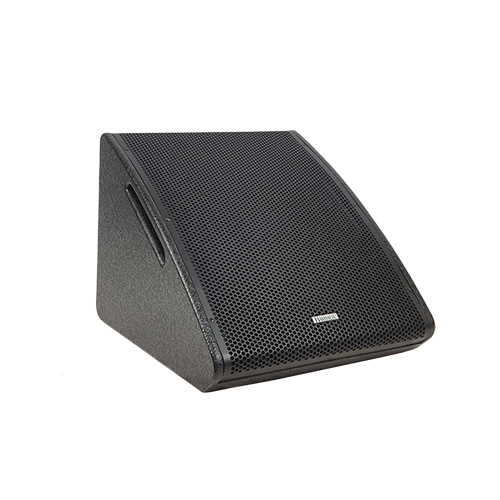

Model: AK-12MP (12″ 2way full range Active Monitor system)
Power Handling: 600W
Frequency Range: 43Hz -20KHz
Frequency Response: 55Hz -19KHz
Average Sensitivity: 98dB(W/m)
Max SPL: 128dB(PEAK/1M ±3dB)
Nominal Impedance: 8Ω
Nominal Directivity: 90º(H) x 60º(V) Horn Rotable
Low Frequency Driver: Titanium Diaphragm 75mm(3″) Coil / 310mm(12″) woofer
High Frequency Driver: Titanium diaphragm 44mm(1.75″) Coil Compression driver
Connectors: 2 x XLR Female
Enclosure: CNC made with tongue and grove assembly 15mm birch plywood
Finish: Touring grade textured black Paint coating
Dimensions: 450mm(W)×390mm(H)×550mm(D)
Weight: 24.5kg net
